BlueJet META 3200-x4
SPACEco META 3200-x4 is a 3.2m industrial direct textile printer featuring 32 four-row piezoelectric printheads. It supports up to 8 color channels and works with reactive, disperse, pigment, sublimation and acid textile inks.
Its constant-tension unwinding & rewinding handles rolls up to 5mm thick. With 417m/h max speed, it balances print quality and output. Powered by 3-phase 380V supply, it runs 24h continuously. Ideal for home textiles, curtains and upholstery.
Its constant-tension unwinding & rewinding handles rolls up to 5mm thick. With 417m/h max speed, it balances print quality and output. Powered by 3-phase 380V supply, it runs 24h continuously. Ideal for home textiles, curtains and upholstery.

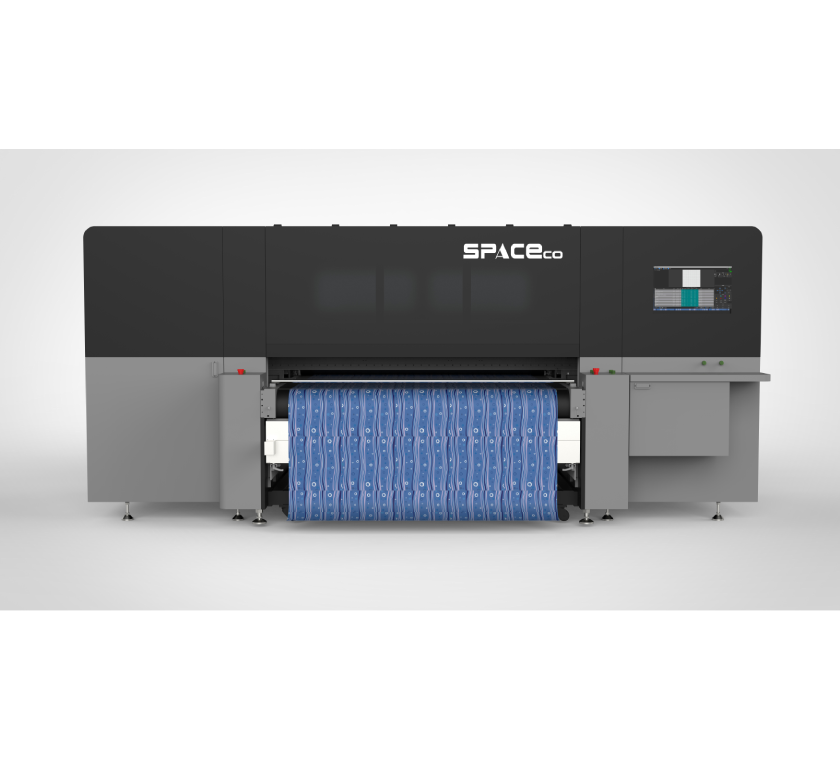

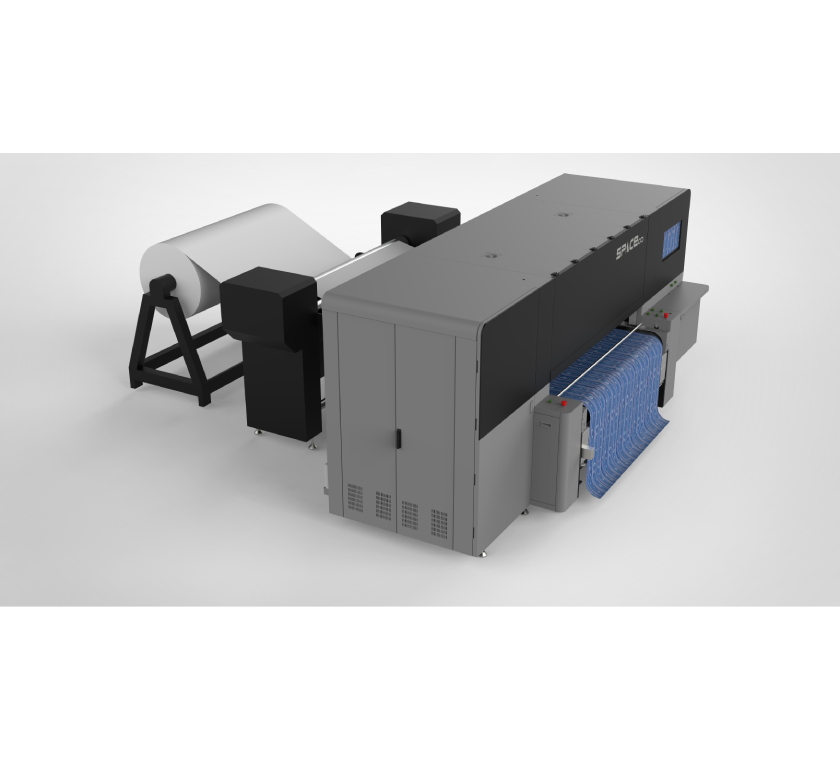

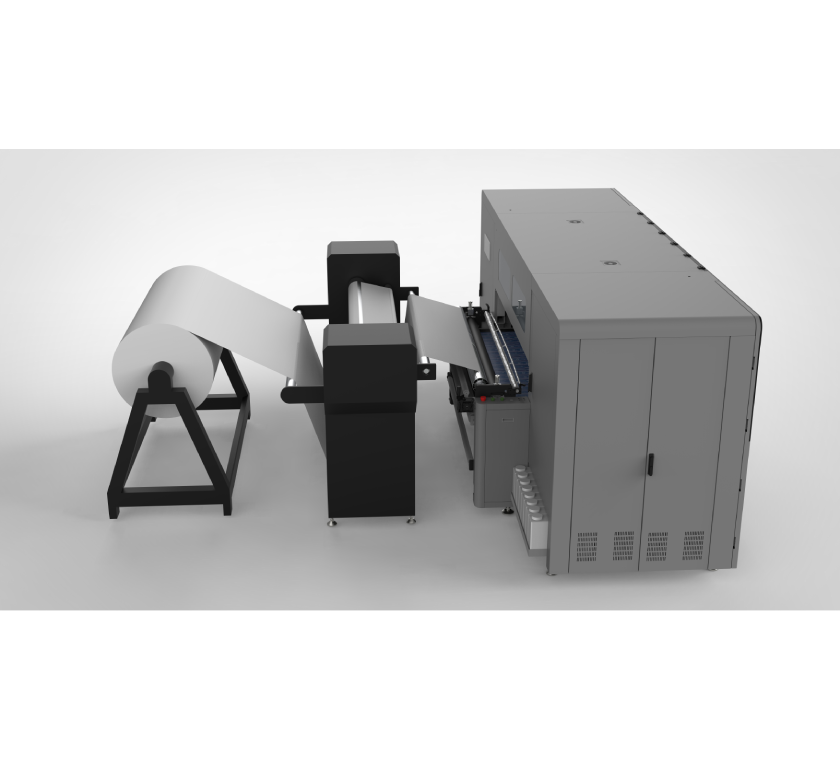

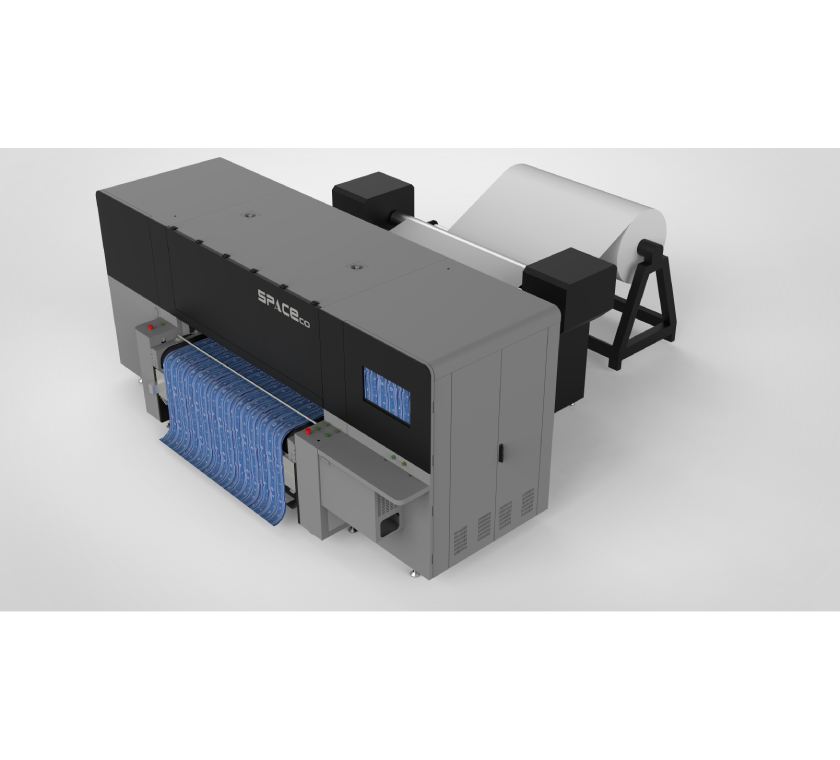

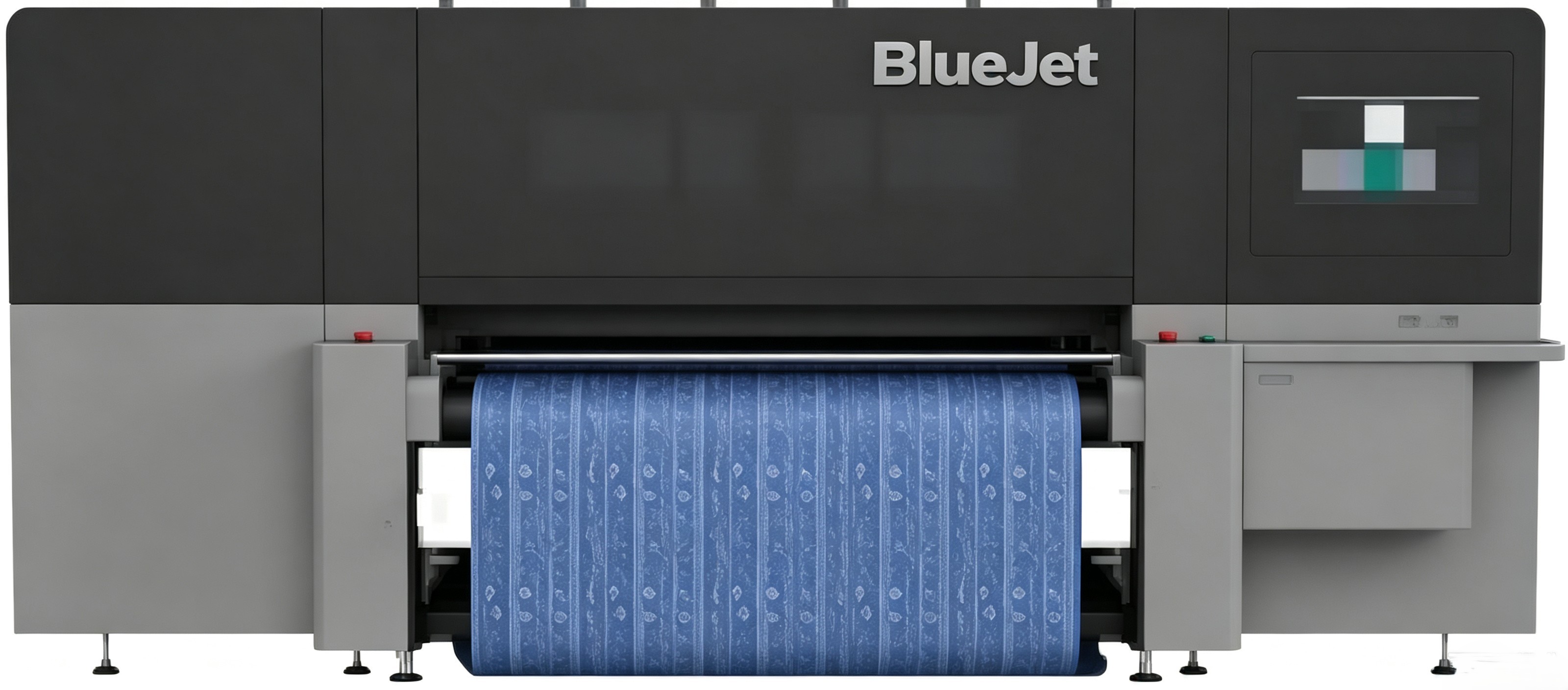

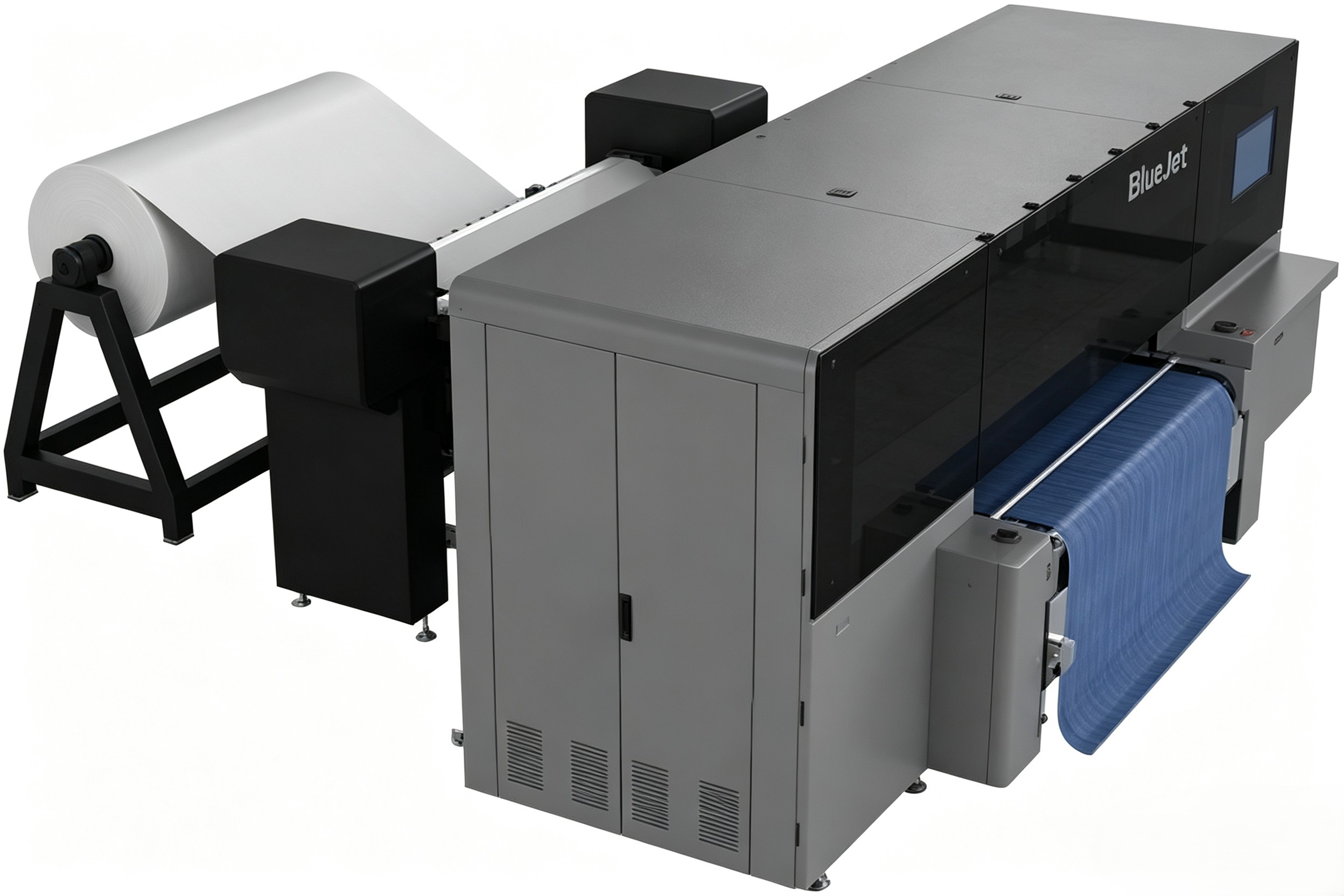

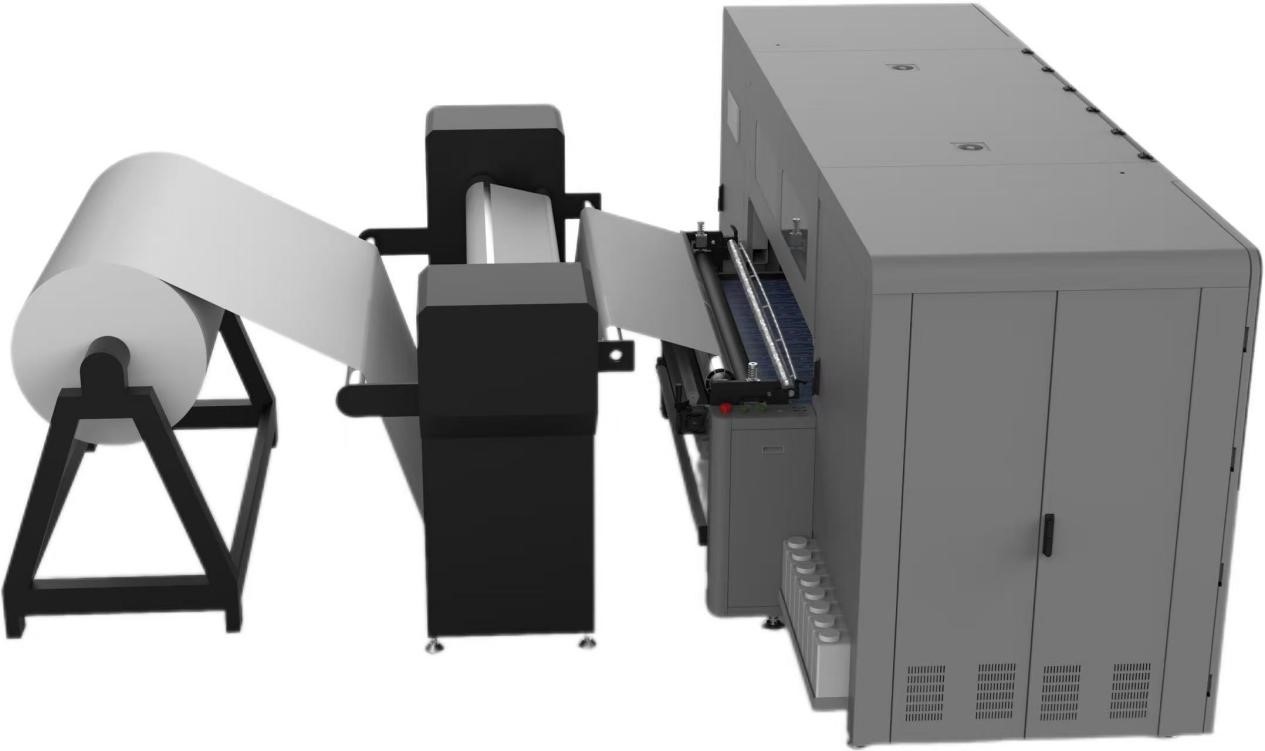

Product Display
| Category | Item | Technical Data |
| Printing Specifications | Printhead Quantity | 32 pcs industrial-grade piezoelectric p... |
| Printing Specifications | Ink Delivery System | Max nozzle bank rows: 4; Max color ch... |
| Printing Specifications | Maximum Throughput (Test criteria: 5% feather, 8-color channel layout, test media width: 3.0 m) | 600 dpi 2-pass: 203 m/h 508 dpi 2-pass: 242 m/h 600 dpi 1-pass: 358 m/h 508 dpi 1-pass: 417 m/h |
| Printing Specifications | Color Channel Configuration | CMYK + extended spot color channels |
| Printing Specifications | Compatible Ink Formulations | Reactive textile ink, disperse dye ink, p... ink, acid dye ink |
| Printing Specifications | Single-channel ink supply flow rate | 0.03 L/min |
| Media Handling & Winding Unit | Maximum media thickness | 5 mm |
| Media Handling & Winding Unit | Unwinding Feeder Assembly | Adjustable tension unwinder; Standard... |
| Media Handling & Winding Unit | Rewinding Take-up Assembly | Adjustable tension rewinder; Standard... |
| Electrical Specifications | Mains Power Input | AC 380 V ±10%, 3-phase, 50/60 Hz |
| Electrical Specifications | Main Unit Power Rating | 16 kW/h |
| Electrical Specifications | Conveyor Power Input | AC 380 V ±10%, 3-phase, 50/60 Hz |
| Electrical Specifications | Conveyor Rated Electrical Parameters | Rated power: 3 kW, Rated current: 22... |
| Electrical Specifications | Power Cable Cross-section Spec | Main machine: 5×4 mm²; Drying modu... |
| Machine Overall Dimensions & Mass | Main Machine External Dimension | 5.91×2.13×2.02 m |
| Machine Overall Dimensions & Mass | Net Machine Mass | 4 t |
| Machine Overall Dimensions & Mass | Main Machine Packing Outer Dimension | 6.19×2.25×1.7 m |
| Machine Overall Dimensions & Mass | Packing Additional Mass | 0.1 t |
| Machine Overall Dimensions & Mass | Required Installation Footprint Dimension | 5.91×3.13×2.52 m |
