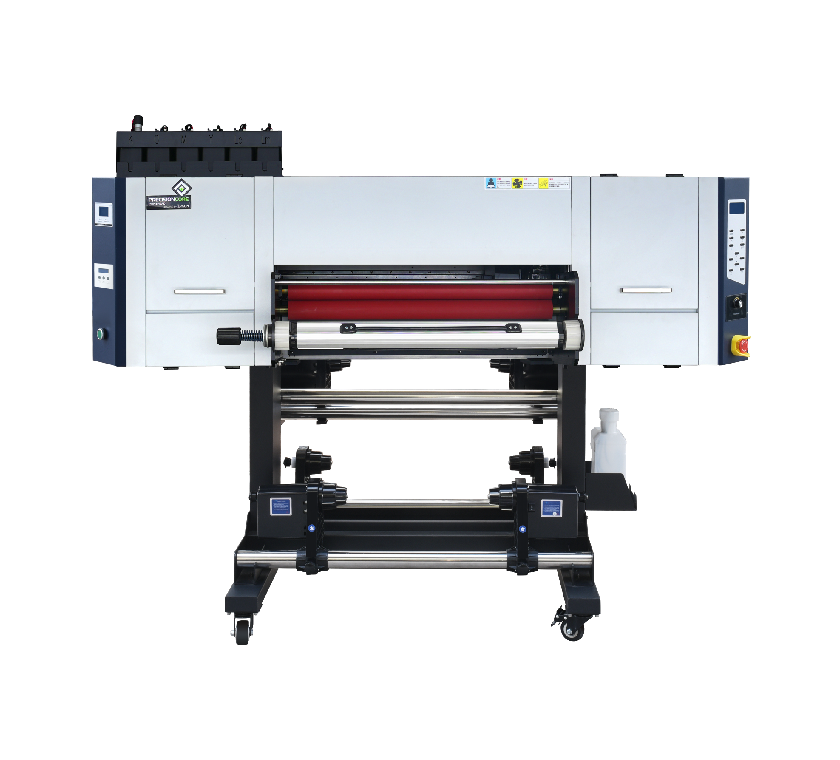

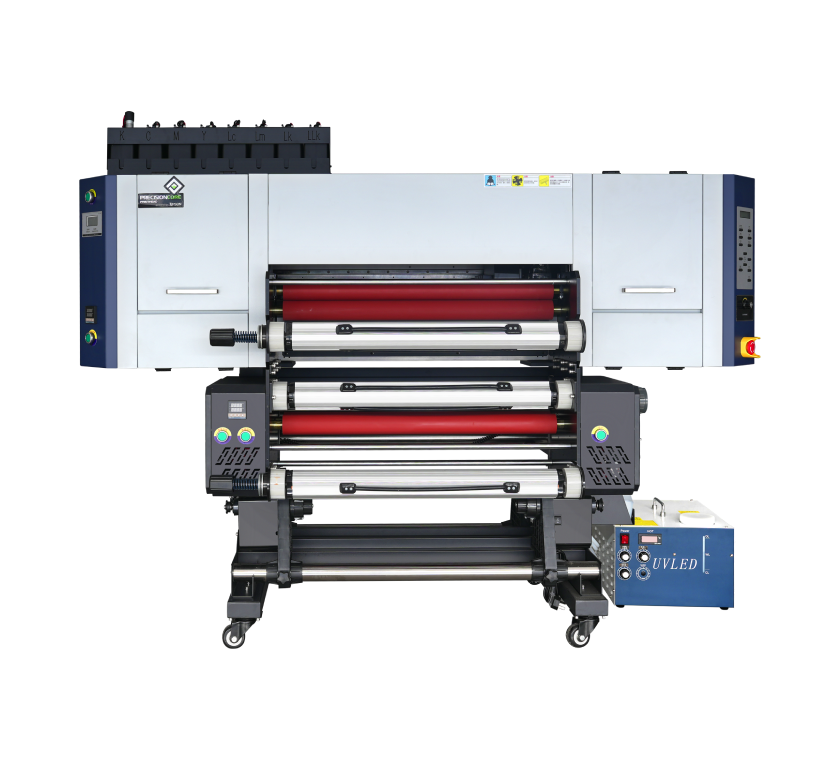

BLUEJET UV-DTF R700
UV-DTF Crystal Label Printer integrates printing, UV curing, laminating and transferring. It creates waterproof durable labels for all surfaces without plates, cutting costs and time. Precision printheads ensure scratch-resistant prints with strong adhesion. Suitable for stickers, cosmetic and electronic labels. It supports QR codes and serial numbers, perfect for on-demand small batch orders.
Product Display
| Model | BLUEJET UV-DTF R700 | ||
| Printhead Type | Epson i3200-U1 | Laminating roller | High temperature, support hot stamping rubber roller |
| Number of printheads | 3pcs | Laminating pneumatic lift | Double-sided cylinder |
| Print width | 700mm | Laminate moving rod | Control laminating paper walking balance |
| Printhead flash | With anti-blocking flash spray and automatic moisturizing function | Operation language | Chinese/English |
| Ink Type | Special ink for crystal label | Operating system | Windows 10/Win 7 |
| Ink Color | CMYKWV/CMYKWPSA | Print Interface | USB |
| Cartridge Capacity | 1500ml/color | RIP software | Maintop |
| Curing System | Water cooler + LED Uv light | Power supply parameters | AC-220V,50Hz/60Hz 10A |
| Material Thickness | 1-3mm | Power (W) | 1500W |
| Print Media | Crystal label special materials, etc. | Noise | Min<32dB，Max<=75dB |
| Print Width | 40kg(Max) | Operating environment | Temperature range:18 ℃~25 ℃; Humidity range: 35%~65% Rh |
| Paper Receiving Unit | Front finished film winder + rear protective film winder | Machine size | 1665mm *750mm* 1270mm (L*W*H) |
| Paper Unwind Unit | Standard equipment | Machine weight | 150kg |
