BLUEJET UV-DTF 302-U

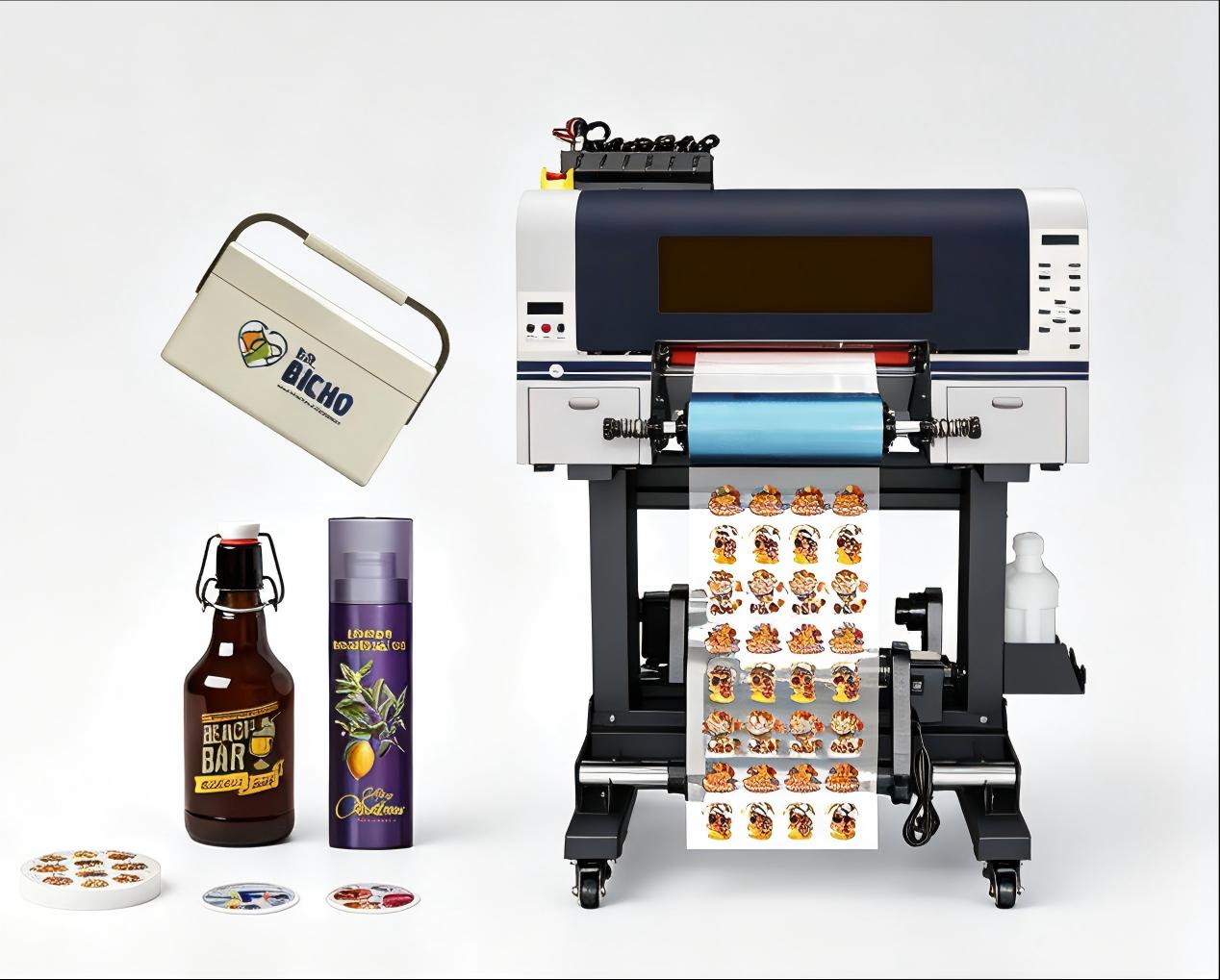

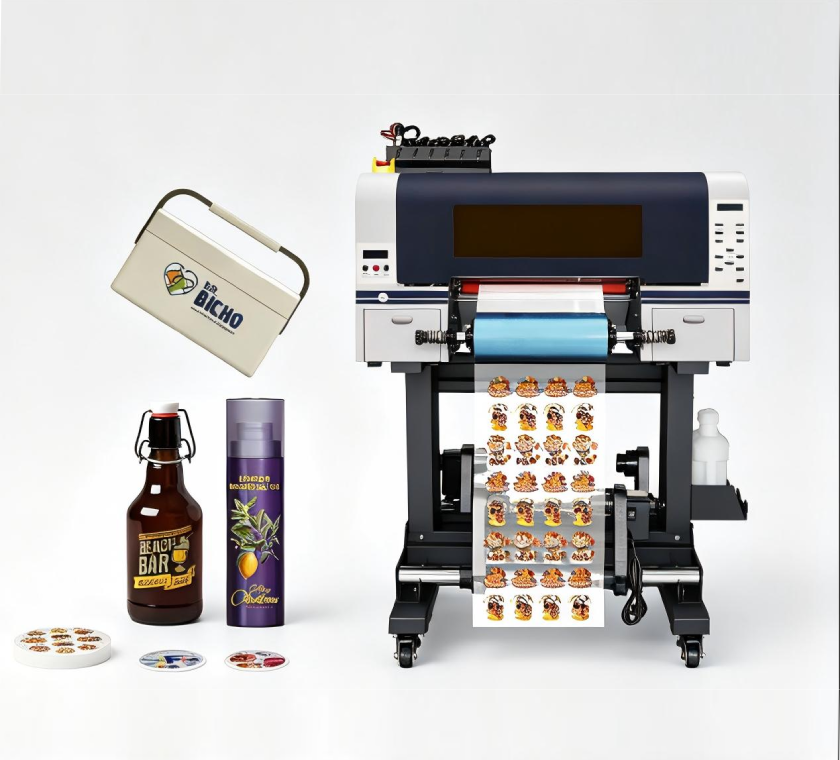

UV-DTF Crystal Label Printer integrates printing, UV curing, laminating and transferring. It creates waterproof durable labels for all surfaces without plates, cutting costs and time. Precision printheads ensure scratch-resistant prints with strong adhesion. Suitable for stickers, cosmetic and electronic labels. It supports QR codes and serial numbers, perfect for on-demand small batch orders.
Product Display
| Product Model | BLUEJET UV-DTF 302-U |
| Number of Printhead | 1/2 |
| Printhead Type | I3200-U1HD*1; XP600*2 |
| Printhead Height | 1-3mm |
| Printhead Cleaning | Fully automatic cleaning with anti-clogging flashing and automatic moisturizing function |
| Ink Type | UV DTF ink |
| Ink Color | Six colors (C/M/Y/K/W/V) |
| Ink Cartridge Capacity | 250ml per color |
| Ink Supply Method | Positive pressure continuous ink supply |
| Printing Width | 300 mm |
| Media | UV DTF AB Film |
| Maximum Roll Weight | < 40 kg |
| Curing System | Air cooled+LED UV lamp |
| Laminating machine rubber roller | High temperature,support gold stamping rubber roller |
| Laminating machine moving rod | Control the balance of lamination paper feeding |
| Receive and release device | One paper receiving device, two paper releasing device |
| Operation Language | Chinese / English |
| Computer System | Win11 / Win10 / Win7 |
| Working Environment | Temperature range: 18°C-30°C; Humidity range: 40%-60% Rh |
| Printing Interface | network port |
| RIP Software | Maintop |
| Power Parameters | AC-220V, 50Hz / 60Hz |
| Power (W) | 1000W |
| Noise Level | Standby <32dB, working ≤65dB |
| Machine Dimensions | 960*750*1400mm (L*W*H) |
| Machine Weight | 130 Kg |
| Package Dimensions | 1040*1040*680mm |
| Package Weight | 142 Kg |
